DropBox Dashboard
This dashboard displays information about DropBox, which can assist the analysts with their day to day job.
Dropbox ENABLED
Details
| ID | 8e39c026e23a40bc8985f306e4a6511d |
|---|---|
| From Version | 6.10.0 |
| Supported Modules | xsiam |

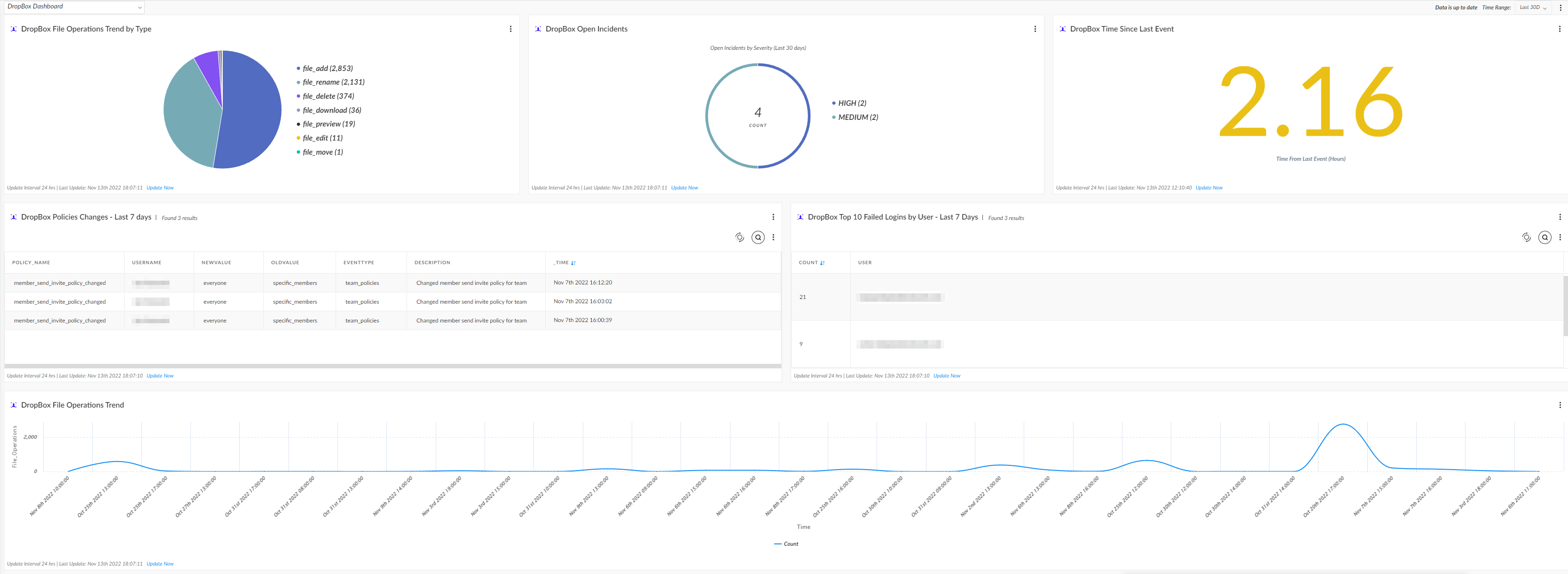

Screenshot
Widgets (6)
DropBox File Operations Trend by Type
This panel displays the file operations by the differnt type of operations.
Custom XQL pie
config timeframe = 30d | datamodel dataset = dropbox_dropbox_raw | filter xdm.event.type = "file_operations" and xdm.event.operation_sub_type != "apply_naming_convention" | comp count() as Count by xdm.event.operation_sub_type | alter Operation_Type = xdm.event.operation_sub_type | fields -xdm.event.operation_sub_type | sort desc Count | view graph type = pie subtype = full xaxis = Operation_Type yaxis = Count
DropBox Open Incidents
This panel contains the open incidents related to DropBox.
Custom XQL pie
config timeframe = 30d | dataset = incidents | filter description contains "Dropbox" | filter status contains "New" | comp count (severity) as Count by severity | view graph type = pie header = "Open Incidents by Severity (Last 30 days)" xaxis = severity yaxis = Count
DropBox Time Since Last Event
This panel display the time in hours from the last event. Lower than 1 hour diff is green, between 1-3 is orange and higher than 3 is red.
Custom XQL single
dataset = dropbox_dropbox_raw | comp max(_time) as LastTimeEvent | alter nowTime = current_time() | alter TimeDiffMinutes = to_integer(timestamp_diff(nowTime, LastTimeEvent, "MINUTE")) | alter TimeDiffHours = to_string(divide(TimeDiffMinutes, 60)) | alter TimeDiffHours = arrayindex(regextract(TimeDiffHours, "(\d*\.?\d{2})"),0) | alter TimeDiffHours = to_float(TimeDiffHours) | fields TimeDiffHours | view graph type = single subtype = standard yaxis = TimeDiffHours scale_threshold("#25cf68","#eac016","1","#f11126","3") seriestitle("TimeDiffHours","Time From Last Event (Hours)")
DropBox Policies Changes - Last 7 days
This panel displayes the policies changed during the last 7 days. Attackers often change policies in order to achieve persistence.
Custom XQL table
config timeframe = 7d | datamodel dataset = dropbox_dropbox_raw | filter xdm.event.type = "team_policies" | fields xdm.event.operation_sub_type as Policy_Name, xdm.source.user.username as UserName, xdm.target.resource.value as NewValue, xdm.target.resource_before.value as OldValue, xdm.event.type as EventType, xdm.event.description as Description, _time | sort desc _time
DropBox Top 10 Failed Logins by User - Last 7 Days
This dashboard display the top 10 count of failed logins made by users during the last 7 days. A high number of fails can be an indication for a misconfiguration or a malicious activity.
Custom XQL table
config timeframe = 7d | datamodel dataset = dropbox_dropbox_raw | filter xdm.event.type = "logins" and xdm.event.operation_sub_type = "login_fail" | comp count() as Count by xdm.source.user.username | sort desc Count | limit 10 | alter User = xdm.source.user.username | fields -xdm.source.user.username
DropBox File Operations Trend
This panel display the trend of file operations over the last 30 days. This can help detect anomalies related to file operations in box.
Custom XQL line
config timeframe = 30d | datamodel dataset = dropbox_dropbox_raw | filter xdm.event.type = "file_operations" | bin _time span=1h | alter _time = date_floor(_time, "h") | comp count() as Count by _time | view graph type = line xaxis = _time yaxis = Count xaxistitle = "Time" yaxistitle = "File_Operations"
Source
Dropbox_Dashboard.json{ "dashboards_data": [ { "id": "8e39c026e23a40bc8985f306e4a6511d", "name": "DropBox Dashboard", "description": "This dashboard displays information about DropBox, which can assist the analysts with their day to day job.", "status": "ENABLED", "layout": [ { "id": "row-1624", "data": [ { "key": "xql_1668004335717", "data": { "type": "Custom XQL", "width": 33.333333333333336, "height": 324, "phrase": "config timeframe = 30d\n| datamodel dataset = dropbox_dropbox_raw\n| filter xdm.event.type = \"file_operations\" and xdm.event.operation_sub_type != \"apply_naming_convention\" \n| comp count() as Count by xdm.event.operation_sub_type \n| alter Operation_Type = xdm.event.operation_sub_type \n| fields -xdm.event.operation_sub_type \n| sort desc Count\n| view graph type = pie subtype = full xaxis = Operation_Type yaxis = Count ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "pie", "commands": [ { "command": { "op": "=", "name": "subtype", "value": "full" } }, { "command": { "op": "=", "name": "xaxis", "value": "Operation_Type" } }, { "command": { "op": "=", "name": "yaxis", "value": "Count" } } ] } } }, { "key": "xql_1668355243914", "data": { "type": "Custom XQL", "width": 33.333333333333336, "height": 324, "phrase": "config timeframe = 30d\n| dataset = incidents \n| filter description contains \"Dropbox\"\n| filter status contains \"New\" \n| comp count (severity) as Count by severity\n| view graph type = pie header = \"Open Incidents by Severity (Last 30 days)\" xaxis = severity yaxis = Count ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "pie", "commands": [ { "command": { "op": "=", "name": "header", "value": "\"Open Incidents by Severity (Last 30 days)\"" } }, { "command": { "op": "=", "name": "xaxis", "value": "severity" } }, { "command": { "op": "=", "name": "yaxis", "value": "Count" } } ] } } }, { "key": "xql_1668077646616", "data": { "type": "Custom XQL", "width": 33.333333333333336, "height": 324, "phrase": "dataset = dropbox_dropbox_raw \n| comp max(_time) as LastTimeEvent\n| alter nowTime = current_time()\n| alter TimeDiffMinutes = to_integer(timestamp_diff(nowTime, LastTimeEvent, \"MINUTE\"))\n| alter TimeDiffHours = to_string(divide(TimeDiffMinutes, 60))\n| alter TimeDiffHours = arrayindex(regextract(TimeDiffHours, \"(\\d*\\.?\\d{2})\"),0)\n| alter TimeDiffHours = to_float(TimeDiffHours)\n| fields TimeDiffHours\n| view graph type = single subtype = standard yaxis = TimeDiffHours scale_threshold(\"#25cf68\",\"#eac016\",\"1\",\"#f11126\",\"3\") seriestitle(\"TimeDiffHours\",\"Time From Last Event (Hours)\") ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "single", "commands": [ { "command": { "op": "=", "name": "subtype", "value": "standard" } }, { "command": { "op": "=", "name": "yaxis", "value": "TimeDiffHours" } }, { "func": { "args": [ "#25cf68", "#eac016", 1, "#f11126", 3 ], "name": "scale_threshold" } }, { "func": { "args": [ "TimeDiffHours", "Time From Last Event (Hours)" ], "name": "seriestitle" } } ] } } } ] }, { "id": "row-8748", "data": [ { "key": "xql_1668007118551", "data": { "type": "Custom XQL", "width": 50, "height": 400, "phrase": "config timeframe = 7d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"team_policies\" \n| fields xdm.event.operation_sub_type as Policy_Name, xdm.source.user.username as UserName, xdm.target.resource.value as NewValue, xdm.target.resource_before.value as OldValue, xdm.event.type as EventType, xdm.event.description as Description, _time\n| sort desc _time ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "table", "commands": [] }, "gridRawStorageInfo": { "sort": null, "coldefs": {}, "rowHeight": "{\"rowHeight\":\"regular\",\"gridRowsHeight\":\"medium-row\"}", "columnWidth": null } } }, { "key": "xql_1667996951841", "data": { "type": "Custom XQL", "width": 50, "height": 400, "phrase": "config timeframe = 7d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"logins\" and xdm.event.operation_sub_type = \"login_fail\" \n| comp count() as Count by xdm.source.user.username \n| sort desc Count\n| limit 10\n| alter User = xdm.source.user.username \n| fields -xdm.source.user.username ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "table", "commands": [] }, "gridRawStorageInfo": { "sort": null, "coldefs": {}, "rowHeight": "{\"rowHeight\":\"stretch\",\"gridRowsHeight\":\"high-row\"}", "columnWidth": null } } } ] }, { "id": "row-6550", "data": [ { "key": "xql_1668002137913", "data": { "type": "Custom XQL", "width": 100, "height": 271, "phrase": "config timeframe = 30d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"file_operations\" \n| bin _time span=1h \n| alter _time = date_floor(_time, \"h\")\n| comp count() as Count by _time\n| view graph type = line xaxis = _time yaxis = Count xaxistitle = \"Time\" yaxistitle = \"File_Operations\" ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "line", "commands": [ { "command": { "op": "=", "name": "xaxis", "value": "_time" } }, { "command": { "op": "=", "name": "yaxis", "value": "Count" } }, { "command": { "op": "=", "name": "xaxistitle", "value": "\"Time\"" } }, { "command": { "op": "=", "name": "yaxistitle", "value": "\"File_Operations\"" } } ] } } } ] } ], "default_dashboard_id": 1, "global_id": "8e39c026e23a40bc8985f306e4a6511d" } ], "widgets_data": [ { "widget_key": "xql_1667996951841", "title": "DropBox Top 10 Failed Logins by User - Last 7 Days", "creation_time": 1667996951841, "description": "This dashboard display the top 10 count of failed logins made by users during the last 7 days. A high number of fails can be an indication for a misconfiguration or a malicious activity.", "data": { "phrase": "config timeframe = 7d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"logins\" and xdm.event.operation_sub_type = \"login_fail\" \n| comp count() as Count by xdm.source.user.username \n| sort desc Count\n| limit 10\n| alter User = xdm.source.user.username \n| fields -xdm.source.user.username ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "table", "commands": [] }, "gridRawStorageInfo": { "sort": null, "coldefs": {}, "rowHeight": "{\"rowHeight\":\"stretch\",\"gridRowsHeight\":\"high-row\"}", "columnWidth": null } }, "support_time_range": true, "additional_info": { "query_tables": [], "query_uses_library": false } }, { "widget_key": "xql_1668002137913", "title": "DropBox File Operations Trend", "creation_time": 1668002137913, "description": "This panel display the trend of file operations over the last 30 days. This can help detect anomalies related to file operations in box.", "data": { "phrase": "config timeframe = 30d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"file_operations\" \n| bin _time span=1h \n| alter _time = date_floor(_time, \"h\")\n| comp count() as Count by _time\n| view graph type = line xaxis = _time yaxis = Count xaxistitle = \"Time\" yaxistitle = \"File_Operations\" ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "line", "commands": [ { "command": { "op": "=", "name": "xaxis", "value": "_time" } }, { "command": { "op": "=", "name": "yaxis", "value": "Count" } }, { "command": { "op": "=", "name": "xaxistitle", "value": "\"Time\"" } }, { "command": { "op": "=", "name": "yaxistitle", "value": "\"File_Operations\"" } } ] } }, "support_time_range": true, "additional_info": { "query_tables": [], "query_uses_library": false } }, { "widget_key": "xql_1668004335717", "title": "DropBox File Operations Trend by Type", "creation_time": 1668004335717, "description": "This panel displays the file operations by the differnt type of operations.", "data": { "phrase": "config timeframe = 30d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"file_operations\" and xdm.event.operation_sub_type != \"apply_naming_convention\" \n| comp count() as Count by xdm.event.operation_sub_type \n| alter Operation_Type = xdm.event.operation_sub_type \n| fields -xdm.event.operation_sub_type \n| sort desc Count\n| view graph type = pie subtype = full xaxis = Operation_Type yaxis = Count ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "pie", "commands": [ { "command": { "op": "=", "name": "subtype", "value": "full" } }, { "command": { "op": "=", "name": "xaxis", "value": "Operation_Type" } }, { "command": { "op": "=", "name": "yaxis", "value": "Count" } } ] } }, "support_time_range": true, "additional_info": { "query_tables": [], "query_uses_library": false } }, { "widget_key": "xql_1668007118551", "title": "DropBox Policies Changes - Last 7 days", "creation_time": 1668007118551, "description": "This panel displayes the policies changed during the last 7 days. Attackers often change policies in order to achieve persistence.", "data": { "phrase": "config timeframe = 7d\n| datamodel dataset = dropbox_dropbox_raw \n| filter xdm.event.type = \"team_policies\" \n| fields xdm.event.operation_sub_type as Policy_Name, xdm.source.user.username as UserName, xdm.target.resource.value as NewValue, xdm.target.resource_before.value as OldValue, xdm.event.type as EventType, xdm.event.description as Description, _time\n| sort desc _time ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "table", "commands": [] }, "gridRawStorageInfo": { "sort": null, "coldefs": {}, "rowHeight": "{\"rowHeight\":\"regular\",\"gridRowsHeight\":\"medium-row\"}", "columnWidth": null } }, "support_time_range": true, "additional_info": { "query_tables": [], "query_uses_library": false } }, { "widget_key": "xql_1668077646616", "title": "DropBox Time Since Last Event", "creation_time": 1668077646616, "description": "This panel display the time in hours from the last event. Lower than 1 hour diff is green, between 1-3 is orange and higher than 3 is red.", "data": { "phrase": "dataset = dropbox_dropbox_raw \n| comp max(_time) as LastTimeEvent\n| alter nowTime = current_time()\n| alter TimeDiffMinutes = to_integer(timestamp_diff(nowTime, LastTimeEvent, \"MINUTE\"))\n| alter TimeDiffHours = to_string(divide(TimeDiffMinutes, 60))\n| alter TimeDiffHours = arrayindex(regextract(TimeDiffHours, \"(\\d*\\.?\\d{2})\"),0)\n| alter TimeDiffHours = to_float(TimeDiffHours)\n| fields TimeDiffHours\n| view graph type = single subtype = standard yaxis = TimeDiffHours scale_threshold(\"#25cf68\",\"#eac016\",\"1\",\"#f11126\",\"3\") seriestitle(\"TimeDiffHours\",\"Time From Last Event (Hours)\") ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "single", "commands": [ { "command": { "op": "=", "name": "subtype", "value": "standard" } }, { "command": { "op": "=", "name": "yaxis", "value": "TimeDiffHours" } }, { "func": { "args": [ "#25cf68", "#eac016", 1, "#f11126", 3 ], "name": "scale_threshold" } }, { "func": { "args": [ "TimeDiffHours", "Time From Last Event (Hours)" ], "name": "seriestitle" } } ] } }, "support_time_range": true, "additional_info": { "query_tables": [ "dropbox_dropbox_raw" ], "query_uses_library": false } }, { "widget_key": "xql_1668355243914", "title": "DropBox Open Incidents", "creation_time": 1668355243914, "description": "This panel contains the open incidents related to DropBox.", "data": { "phrase": "config timeframe = 30d\n| dataset = incidents \n| filter description contains \"Dropbox\"\n| filter status contains \"New\" \n| comp count (severity) as Count by severity\n| view graph type = pie header = \"Open Incidents by Severity (Last 30 days)\" xaxis = severity yaxis = Count ", "time_frame": { "relativeTime": 86400000 }, "viewOptions": { "type": "pie", "commands": [ { "command": { "op": "=", "name": "header", "value": "\"Open Incidents by Severity (Last 30 days)\"" } }, { "command": { "op": "=", "name": "xaxis", "value": "severity" } }, { "command": { "op": "=", "name": "yaxis", "value": "Count" } } ] } }, "support_time_range": true, "additional_info": { "query_tables": [ "incidents" ], "query_uses_library": false } } ], "fromVersion": "6.10.0", "supportedModules": [ "xsiam" ] }
