Microsoft Defender for Endpoint Overview Dashboard

Details

ID	`e6d86cc00b4849e6a45a07c6ce4b310d`
From Version	6.10.0
Supported Modules	xsiam

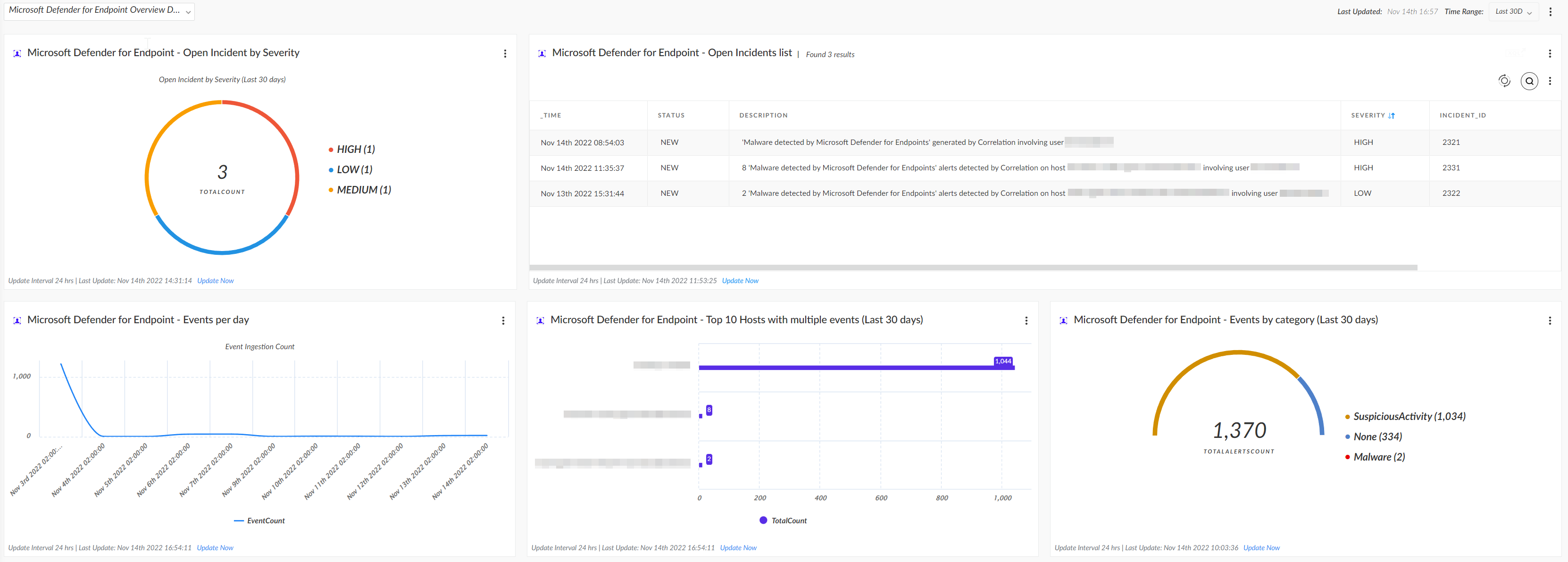

Screenshot

Widgets (5)

Microsoft Defender for Endpoint - Open Incident by Severity

This widget displays Pie chart of the open incident by severity

Custom XQL pie

dataset = incidents
|filter description contains "Microsoft Defender for Endpoint"
|filter status not contains "Resolved"
|comp count (severity) as TotalCount by severity
| view graph type = pie header = "Open Incident by Severity (Last 30 days)" xaxis = severity yaxis = TotalCount valuecolor("HIGH","#f75e40") valuecolor("LOW","#50b0f5")

Microsoft Defender for Endpoint - Open Incidents list

This widget display list of the open incidents by severity

Custom XQL table

dataset = incidents
|filter description contains "Microsoft Defender for Endpoint"
|filter status not contains "Resolved"
|fields
status ,
description,
severity,
incident_id
|sort asc severity

Microsoft Defender for Endpoint - Events per day

This widget displays line chart of Events per day

Custom XQL column

datamodel dataset in (microsoft_365_defender_raw)
|filter xdm.alert.category = "Malware"
|comp count (xdm.target.host.fqdn) as TotalCount by xdm.target.host.fqdn
|sort desc TotalCount
|limit 10
| view graph type = column subtype = grouped layout = horizontal xaxis = xdm.target.host.fqdn yaxis = TotalCount seriescolor("TotalCount","#fc240a")

Microsoft Defender for Endpoint - Top 10 Hosts with multiple events (Last 30 days)

This widget displays column graph of Top 10 Hosts with multiple events (Last 30 days)

Custom XQL column

datamodel dataset in (microsoft_365_defender_raw)
|filter xdm.alert.category = "SuspiciousActivity"
|comp count (xdm.target.host.fqdn) as TotalCount by xdm.target.host.fqdn
|sort desc TotalCount
|limit 10
| view graph type = column subtype = grouped layout = horizontal xaxis = xdm.target.host.fqdn yaxis = TotalCount seriescolor("TotalCount","#bd8a30")

Microsoft Defender for Endpoint - Events by category (Last 30 days)

This widget displays pie chart of all Microsoft Defender for Endpoint Events by category (Last 30 days)

Custom XQL pie

datamodel dataset in (microsoft_365_defender_raw)
|comp count (xdm.alert.category ) as TotalAlertsCount by xdm.alert.category
| view graph type = pie subtype = semi_donut xaxis = xdm.alert.category yaxis = TotalAlertsCount valuecolor("Malware","#e70000") valuecolor("None","#4e80c9") valuecolor("SuspiciousActivity","#d18e00")

Source

MicrosoftDefenderAdvancedThreatProtection_Dashboard.json

Download History Raw

{
  "dashboards_data": [
    {
      "id": "e6d86cc00b4849e6a45a07c6ce4b310d",
      "name": "Microsoft Defender for Endpoint Overview Dashboard",
      "description": null,
      "status": "ENABLED",
      "layout": [
        {
          "id": "row-7081",
          "data": [
            {
              "key": "xql_1668072520119",
              "data": {
                "type": "Custom XQL",
                "width": 33.317467872441696,
                "height": 400,
                "phrase": "dataset = incidents \r\n|filter description contains \"Microsoft Defender for Endpoint\"\r\n|filter status not contains \"Resolved\" \r\n|comp count (severity) as TotalCount by severity\n| view graph type = pie header = \"Open Incident by Severity (Last 30 days)\" xaxis = severity yaxis = TotalCount valuecolor(\"HIGH\",\"#f75e40\") valuecolor(\"LOW\",\"#50b0f5\") ",
                "time_frame": {
                  "relativeTime": 2592000000
                },
                "viewOptions": {
                  "type": "pie",
                  "commands": [
                    {
                      "command": {
                        "op": "=",
                        "name": "header",
                        "value": "\"Open Incident by Severity (Last 30 days)\""
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "xaxis",
                        "value": "severity"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "yaxis",
                        "value": "TotalCount"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "HIGH",
                          "#f75e40"
                        ],
                        "name": "valuecolor"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "LOW",
                          "#50b0f5"
                        ],
                        "name": "valuecolor"
                      }
                    }
                  ]
                }
              }
            },
            {
              "key": "xql_1668075997841",
              "data": {
                "type": "Custom XQL",
                "width": 66.6825321275583,
                "height": 400,
                "phrase": "dataset = incidents \r\n|filter description contains \"Microsoft Defender for Endpoint\"\r\n|filter status not contains \"Resolved\" \r\n|fields\r\nstatus ,\r\ndescription,\r\nseverity, \r\nincident_id\r\n|sort asc severity ",
                "entityType": "xql-widget-table-9e00c934-23e4-4f1f-97e7-be7d2ebda292",
                "time_frame": {
                  "relativeTime": 2592000000
                },
                "viewOptions": {
                  "type": "table",
                  "commands": []
                },
                "gridRawStorageInfo": {
                  "sort": "{\"colId\":\"severity\",\"sort\":\"asc\"}",
                  "coldefs": {},
                  "rowHeight": "{\"rowHeight\":\"regular\",\"gridRowsHeight\":\"medium-row\"}",
                  "columnWidth": null
                }
              }
            }
          ]
        },
        {
          "id": "row-1802",
          "data": [
            {
              "key": "xql_1668088195787",
              "data": {
                "type": "Custom XQL",
                "width": 33.333333333333336,
                "height": 400,
                "phrase": "datamodel dataset in (microsoft_365_defender_raw)\r\n|filter xdm.alert.category = \"Malware\"\r\n|comp count (xdm.target.host.fqdn) as TotalCount by xdm.target.host.fqdn\r\n|sort desc TotalCount \r\n|limit 10\n| view graph type = column subtype = grouped layout = horizontal xaxis = xdm.target.host.fqdn yaxis = TotalCount seriescolor(\"TotalCount\",\"#fc240a\") ",
                "time_frame": {
                  "relativeTime": 2592000000
                },
                "viewOptions": {
                  "type": "column",
                  "commands": [
                    {
                      "command": {
                        "op": "=",
                        "name": "subtype",
                        "value": "grouped"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "layout",
                        "value": "horizontal"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "xaxis",
                        "value": "xdm.target.host.fqdn"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "yaxis",
                        "value": "TotalCount"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "TotalCount",
                          "#fc240a"
                        ],
                        "name": "seriescolor"
                      }
                    }
                  ]
                }
              }
            },
            {
              "key": "xql_1668088119662",
              "data": {
                "type": "Custom XQL",
                "width": 33.333333333333336,
                "height": 400,
                "phrase": "datamodel dataset in (microsoft_365_defender_raw)\r\n|filter xdm.alert.category = \"SuspiciousActivity\"\r\n|comp count (xdm.target.host.fqdn) as TotalCount by xdm.target.host.fqdn\r\n|sort desc TotalCount \r\n|limit 10\n| view graph type = column subtype = grouped layout = horizontal xaxis = xdm.target.host.fqdn yaxis = TotalCount seriescolor(\"TotalCount\",\"#bd8a30\") ",
                "time_frame": {
                  "relativeTime": 2592000000
                },
                "viewOptions": {
                  "type": "column",
                  "commands": [
                    {
                      "command": {
                        "op": "=",
                        "name": "subtype",
                        "value": "grouped"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "layout",
                        "value": "horizontal"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "xaxis",
                        "value": "xdm.target.host.fqdn"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "yaxis",
                        "value": "TotalCount"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "TotalCount",
                          "#bd8a30"
                        ],
                        "name": "seriescolor"
                      }
                    }
                  ]
                }
              }
            },
            {
              "key": "xql_1668089259803",
              "data": {
                "type": "Custom XQL",
                "width": 33.333333333333336,
                "height": 400,
                "phrase": "datamodel dataset in (microsoft_365_defender_raw)\r\n|comp count (xdm.alert.category ) as TotalAlertsCount by xdm.alert.category\n| view graph type = pie subtype = semi_donut xaxis = xdm.alert.category yaxis = TotalAlertsCount valuecolor(\"Malware\",\"#e70000\") valuecolor(\"None\",\"#4e80c9\") valuecolor(\"SuspiciousActivity\",\"#d18e00\") ",
                "time_frame": {
                  "relativeTime": 2592000000
                },
                "viewOptions": {
                  "type": "pie",
                  "commands": [
                    {
                      "command": {
                        "op": "=",
                        "name": "subtype",
                        "value": "semi_donut"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "xaxis",
                        "value": "xdm.alert.category"
                      }
                    },
                    {
                      "command": {
                        "op": "=",
                        "name": "yaxis",
                        "value": "TotalAlertsCount"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "Malware",
                          "#e70000"
                        ],
                        "name": "valuecolor"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "None",
                          "#4e80c9"
                        ],
                        "name": "valuecolor"
                      }
                    },
                    {
                      "func": {
                        "args": [
                          "SuspiciousActivity",
                          "#d18e00"
                        ],
                        "name": "valuecolor"
                      }
                    }
                  ]
                }
              }
            }
          ]
        }
      ],
      "default_dashboard_id": 3,
      "global_id": "e6d86cc00b4849e6a45a07c6ce4b310d"
    }
  ],
  "widgets_data": [
    {
      "widget_key": "xql_1668072520119",
      "title": "Microsoft Defender for Endpoint - Open Incident by Severity",
      "creation_time": 1668072520119,
      "description": "This widget displays Pie chart of the open incident by severity",
      "data": {
        "phrase": "dataset = incidents \r\n|filter description contains \"Microsoft Defender for Endpoint\"\r\n|filter status not contains \"Resolved\" \r\n|comp count (severity) as TotalCount by severity\r\n|sort asc severity\n| view graph type = pie header = \"Open Incident by Severity (Last 30 days)\" xaxis = severity yaxis = TotalCount valuecolor(\"HIGH\",\"#ee5638\") valuecolor(\"MEDIUM\",\"#f99e00\") valuecolor(\"LOW\",\"#2292e2\") ",
        "time_frame": {
          "relativeTime": 2592000000
        },
        "viewOptions": {
          "type": "pie",
          "commands": [
            {
              "command": {
                "op": "=",
                "name": "header",
                "value": "\"Open Incident by Severity (Last 30 days)\""
              }
            },
            {
              "command": {
                "op": "=",
                "name": "xaxis",
                "value": "severity"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "yaxis",
                "value": "TotalCount"
              }
            },
            {
              "func": {
                "args": [
                  "HIGH",
                  "#ee5638"
                ],
                "name": "valuecolor"
              }
            },
            {
              "func": {
                "args": [
                  "MEDIUM",
                  "#f99e00"
                ],
                "name": "valuecolor"
              }
            },
            {
              "func": {
                "args": [
                  "LOW",
                  "#2292e2"
                ],
                "name": "valuecolor"
              }
            }
          ]
        }
      },
      "support_time_range": true,
      "additional_info": {
        "query_tables": [
          "incidents"
        ],
        "query_uses_library": false
      }
    },
    {
      "widget_key": "xql_1668075997841",
      "title": "Microsoft Defender for Endpoint - Open Incidents list",
      "creation_time": 1668075997841,
      "description": "This widget display list of the open incidents by severity",
      "data": {
        "phrase": "dataset = incidents \r\n|filter description contains \"Microsoft Defender for Endpoint\"\r\n|filter status not contains \"Resolved\" \r\n|fields\r\nstatus ,\r\ndescription,\r\nseverity, \r\nincident_id\r\n|sort asc severity ",
        "time_frame": {
          "relativeTime": 2592000000
        },
        "viewOptions": {
          "type": "table",
          "commands": []
        },
        "gridRawStorageInfo": {
          "sort": "{\"colId\":\"severity\",\"sort\":\"asc\"}",
          "coldefs": {},
          "rowHeight": "{\"rowHeight\":\"regular\",\"gridRowsHeight\":\"medium-row\"}",
          "columnWidth": null
        }
      },
      "support_time_range": true,
      "additional_info": {
        "query_tables": [
          "incidents"
        ],
        "query_uses_library": false
      }
    },
    {
      "widget_key": "xql_1668088119662",
      "title": "Microsoft Defender for Endpoint - Top 10 Hosts with multiple events (Last 30 days)",
      "creation_time": 1668088119662,
      "description": "This widget displays column graph of  Top 10 Hosts with multiple events (Last 30 days)",
      "data": {
        "phrase": "datamodel dataset = microsoft_365_defender_raw |filter xdm.alert.category != \"None\"\r\n|comp count (xdm.target.host.fqdn) as TotalCount by xdm.target.host.fqdn\r\n|sort desc TotalCount \r\n|limit 10\n| view graph type = column subtype = grouped layout = horizontal show_callouts = `true` xaxis = xdm.target.host.fqdn yaxis = TotalCount seriescolor(\"TotalCount\",\"#582de6\") ",
        "time_frame": {
          "relativeTime": 2592000000
        },
        "viewOptions": {
          "type": "column",
          "commands": [
            {
              "command": {
                "op": "=",
                "name": "subtype",
                "value": "grouped"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "layout",
                "value": "horizontal"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "show_callouts",
                "value": "true"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "xaxis",
                "value": "xdm.target.host.fqdn"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "yaxis",
                "value": "TotalCount"
              }
            },
            {
              "func": {
                "args": [
                  "TotalCount",
                  "#582de6"
                ],
                "name": "seriescolor"
              }
            }
          ]
        }
      },
      "support_time_range": true,
      "additional_info": {
        "query_tables": [],
        "query_uses_library": false
      }
    },
    {
      "widget_key": "xql_1668088195787",
      "title": "Microsoft Defender for Endpoint - Events per day",
      "creation_time": 1668088195787,
      "description": "This widget displays line chart of Events per day",
      "data": {
        "phrase": "datamodel dataset = microsoft_365_defender_raw \r\n|sort asc _time \r\n|bin _time span = 1D\r\n|comp count(_time) as EventCount by _time\n| view graph type = line header = \"Event Ingestion Count\" xaxis = _time yaxis = EventCount seriescolor(\"EventCount\",\"#1e83f7\") ",
        "time_frame": {
          "relativeTime": 2592000000
        },
        "viewOptions": {
          "type": "line",
          "commands": [
            {
              "command": {
                "op": "=",
                "name": "header",
                "value": "\"Event Ingestion Count\""
              }
            },
            {
              "command": {
                "op": "=",
                "name": "xaxis",
                "value": "_time"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "yaxis",
                "value": "EventCount"
              }
            },
            {
              "func": {
                "args": [
                  "EventCount",
                  "#1e83f7"
                ],
                "name": "seriescolor"
              }
            }
          ]
        }
      },
      "support_time_range": true,
      "additional_info": {
        "query_tables": [],
        "query_uses_library": false
      }
    },
    {
      "widget_key": "xql_1668089259803",
      "title": "Microsoft Defender for Endpoint - Events by category (Last 30 days)",
      "creation_time": 1668089259803,
      "description": "This widget displays pie chart of all Microsoft Defender for Endpoint  Events by category (Last 30 days)",
      "data": {
        "phrase": "datamodel dataset = microsoft_365_defender_raw \n|comp count (xdm.alert.category ) as TotalAlertsCount by xdm.alert.category\n| view graph type = pie subtype = semi_donut xaxis = xdm.alert.category yaxis = TotalAlertsCount valuecolor(\"Malware\",\"#e70000\") valuecolor(\"None\",\"#4e80c9\") valuecolor(\"SuspiciousActivity\",\"#d18e00\") ",
        "time_frame": {
          "relativeTime": 2592000000
        },
        "viewOptions": {
          "type": "pie",
          "commands": [
            {
              "command": {
                "op": "=",
                "name": "subtype",
                "value": "semi_donut"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "xaxis",
                "value": "xdm.alert.category"
              }
            },
            {
              "command": {
                "op": "=",
                "name": "yaxis",
                "value": "TotalAlertsCount"
              }
            },
            {
              "func": {
                "args": [
                  "Malware",
                  "#e70000"
                ],
                "name": "valuecolor"
              }
            },
            {
              "func": {
                "args": [
                  "None",
                  "#4e80c9"
                ],
                "name": "valuecolor"
              }
            },
            {
              "func": {
                "args": [
                  "SuspiciousActivity",
                  "#d18e00"
                ],
                "name": "valuecolor"
              }
            }
          ]
        }
      },
      "support_time_range": true,
      "additional_info": {
        "query_tables": [],
        "query_uses_library": false
      }
    }
  ],
  "fromVersion": "6.10.0",
    "supportedModules": [
        "xsiam"
    ]
}
